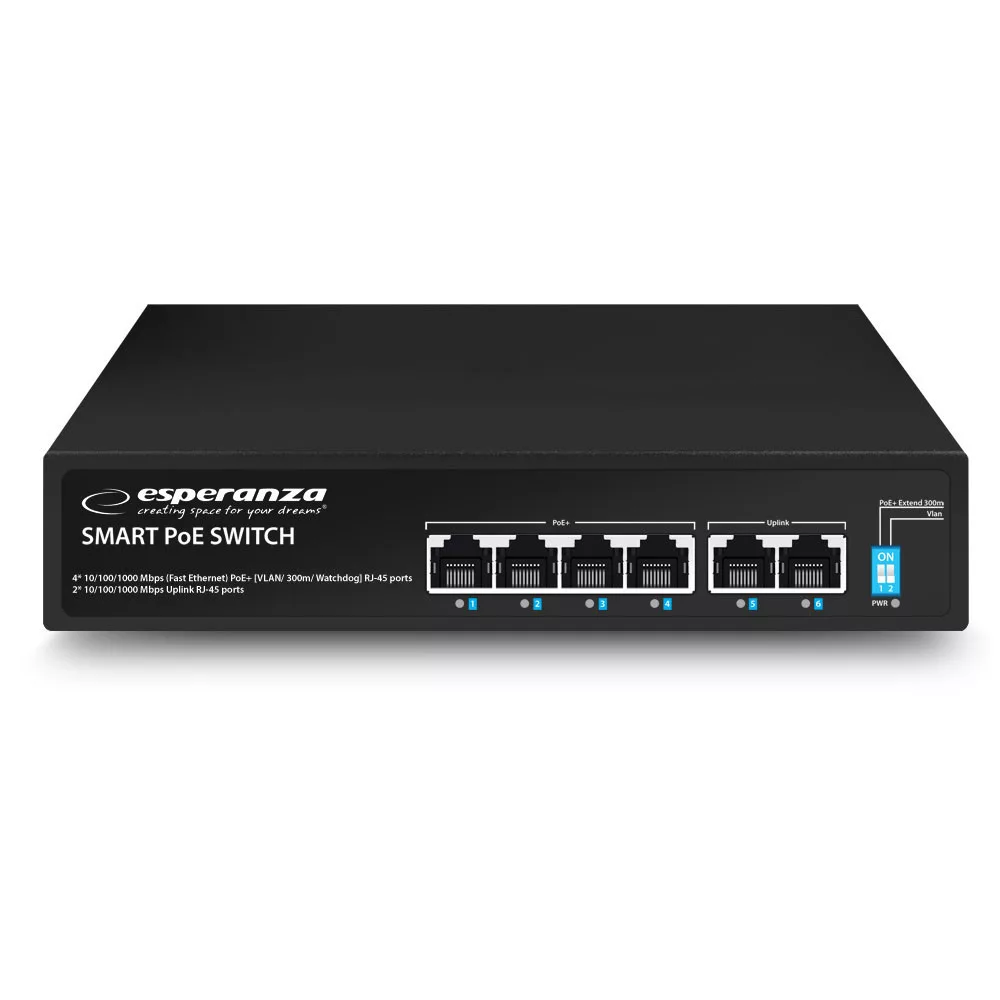

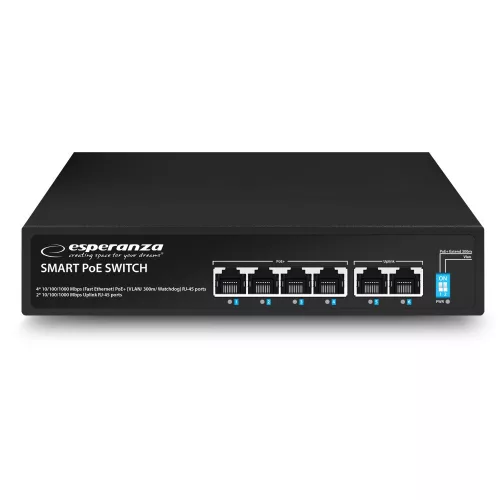

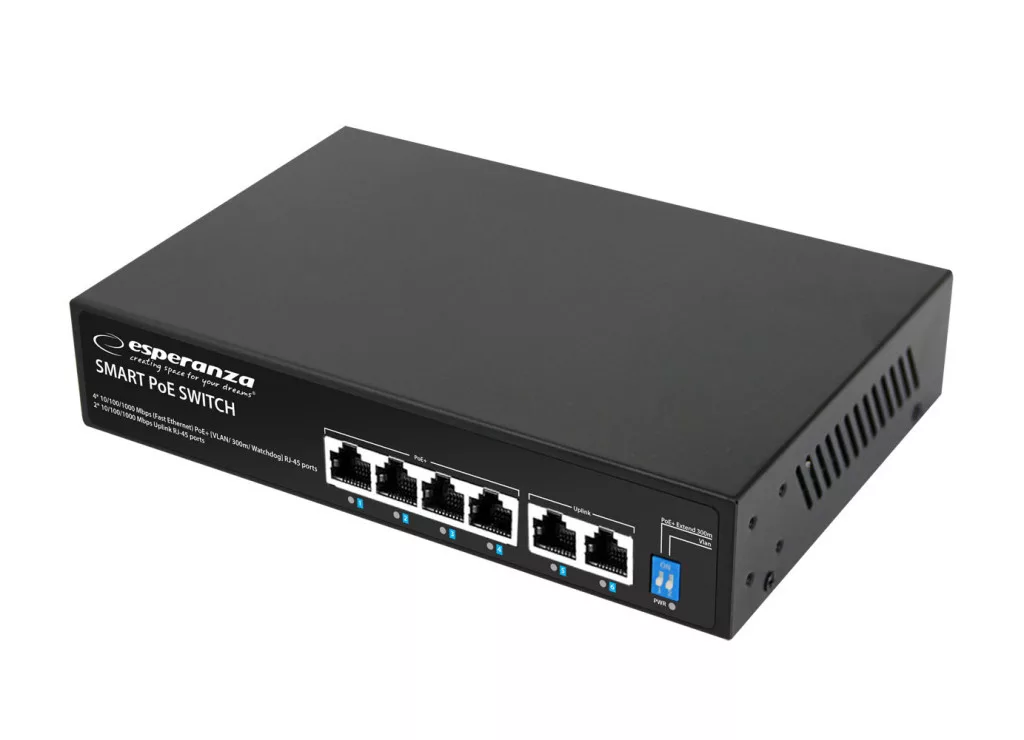

Esperanza 4 poe + 2 uplink port ethernet kapcsoló 10/100/1000 GOLIATH

Esperanza GOLIATH is a functional POE switch with 4xPOE and 2xUplink ports dedicated to IP monitoring. The switch enables data and power transmission up to 300 m, designed specifically for monitoring systems. No configuration is required. The device is ideal for small and medium-sized monitoring systems. The automatic features of this switch make installation and operation simple and hassle-free.

Compact network switch with full functionality

 DATA FLOW CONTROL

 SUPPORT FOR SELF-LEARNING AND MAC UPDATES

 DEDICATED FOR MONITORING

• Ports: 4 pcs of 10/100/1000Mbps RJ45 PoE ports + 2 pcs RJ45 uplink ports with automatic link speed detection
• Auto MDI / MDIX patching
• Standard protocol: IEEE 802.3 10BASE-T, IEEE 802.3u 100Base-TX, IEEE 802.3x, IEEE802.3i 10Base-T
• Port 1-4 support standard: IEEE 802.3af/at
• Type of transmission: Store and Forward
• Bandwidth: 16 Gbps
• Forwarding speed: 8.928 Mpps
• Buffer memory: 1.25 M
• MAC address table: 4 K
• POE and network LED indicator
• Twisted pair transmission:
  • 10BASE-T: Cat5 UTP (≤300 m)
  • 100BASE-TX: Cat5 or later UTP (≤100 m)
• Built in switch (no need to restart power supply):
  • Extend: AI extend 300 m transmission
  • VLan: Turn on, 1-4 Port support each port Isolation & VLAN
• Support Watchdog function by default: 1-4 Port suport AI-PoE Network self-healing
• Max/Average power per port: 30 W / 15.4 W
• Total power: 65 W
• Power supply PIN: 1/2(+), 3/6(-)
• Power consumption:
  • standby: <4 W
  • full load: 65 W
• Built in power adaptor: 220-240 V / 50 Hz
• Operating temperature: -20℃~55℃
• Storage temperature: -40℃~75℃
• Operating air humidity: 5% ~ 90%, non-condensing
• Storage humidity: 5% ~ 95%, non-condensing
• Dimensions: 195 x 135 x 40 [mm]
