Extralink SFP+ 10G | SFP+ Module | 10Gbps, LC/UPC, 1310nm, 40km, single mode, DOM

• Részletek
• Adatok
• Vélemények

Részletek

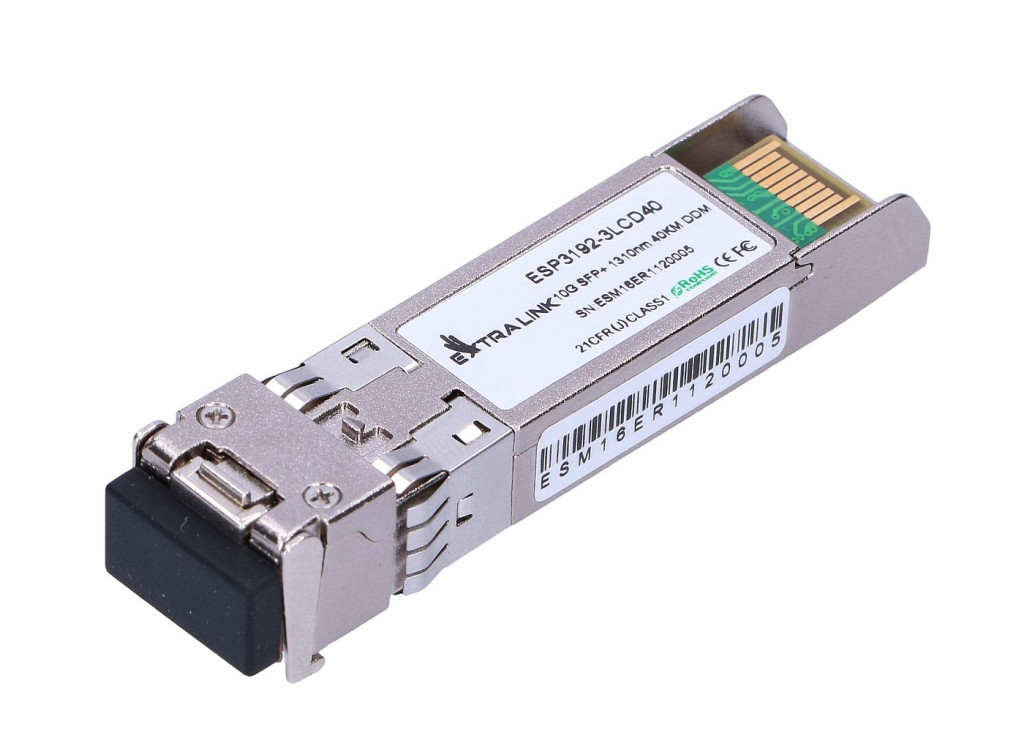

Powerful single-mode module SFP+ 10G 1310NM 40KM LC DUP DDM

Extralink SFP+ 10G 1310NM is used to transmit and receive optical data via single mode optical fibre for link lengths up to 40 km. The electrical interface of the SFP+ 10G 1310NM is compliant with the SFI electrical specification. Transmitter input differential impedance and receiver output are 100 ohm (Ω). Thanks to its metal housing, the SFP LC duplex module has a very low EMI. The SFP 1310NM optical insert allows transmission at a speed of up to 10 Gbps and is compliant with 802.3ae 10G BASE-ER.

Special features



Special features

• Serial 10 Gb/s optical interface compliant with 802.3ae 10GBASE-ER
• 1310 nm DFB transmitter, PIN photodetector
• Transmission up to 40 km on SMF
• Duplex LC connector
• Metal housing to reduce EMI
• Electrical interface compatible with SFF-8431
• 2-wire management interface
• Specifications according to SFF 8472
• Single 3.3 V supply
• Power dissipation < 1.5 W
• Temperature range of the housing during operation from -5°C to 70°C

Adatok

Kiszerelés:

0.0084

Magasság:

60

Hosszúság:

10

Szélesség:

14

Tömeg:

30 g/db
