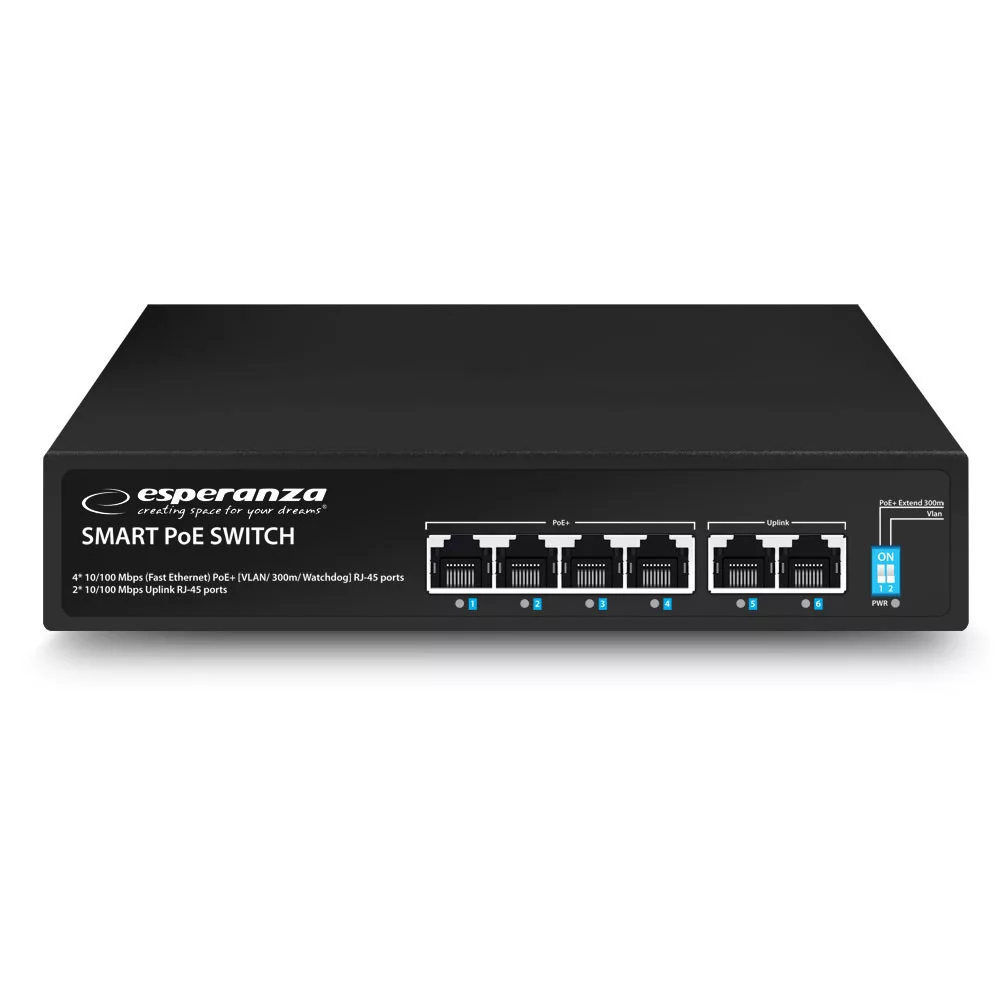

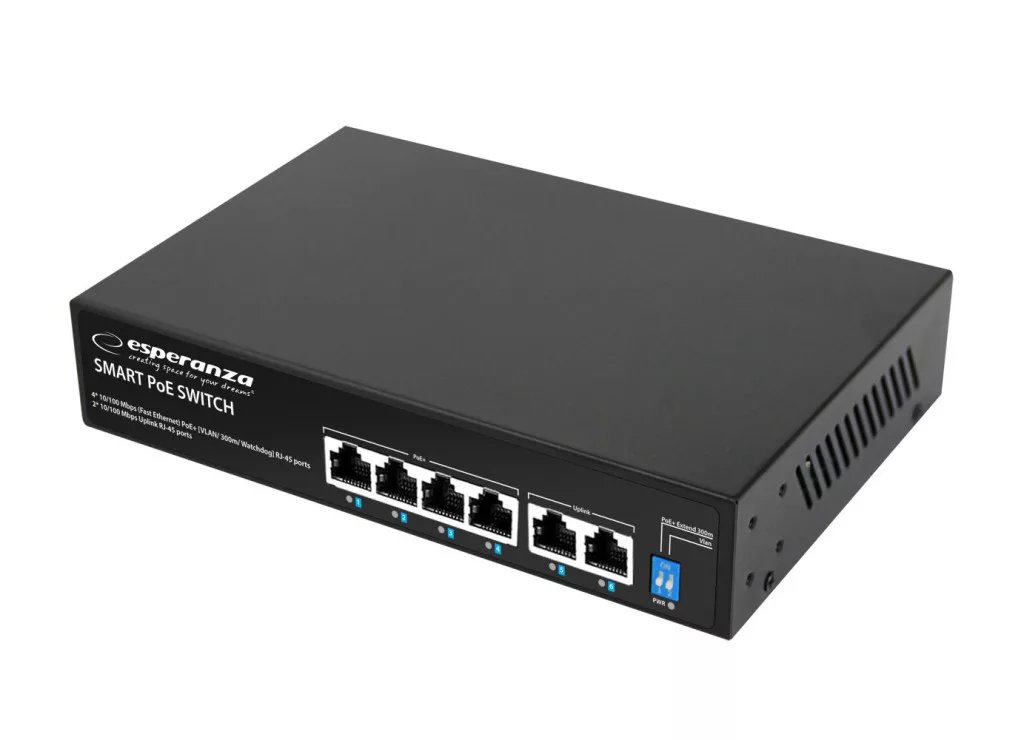

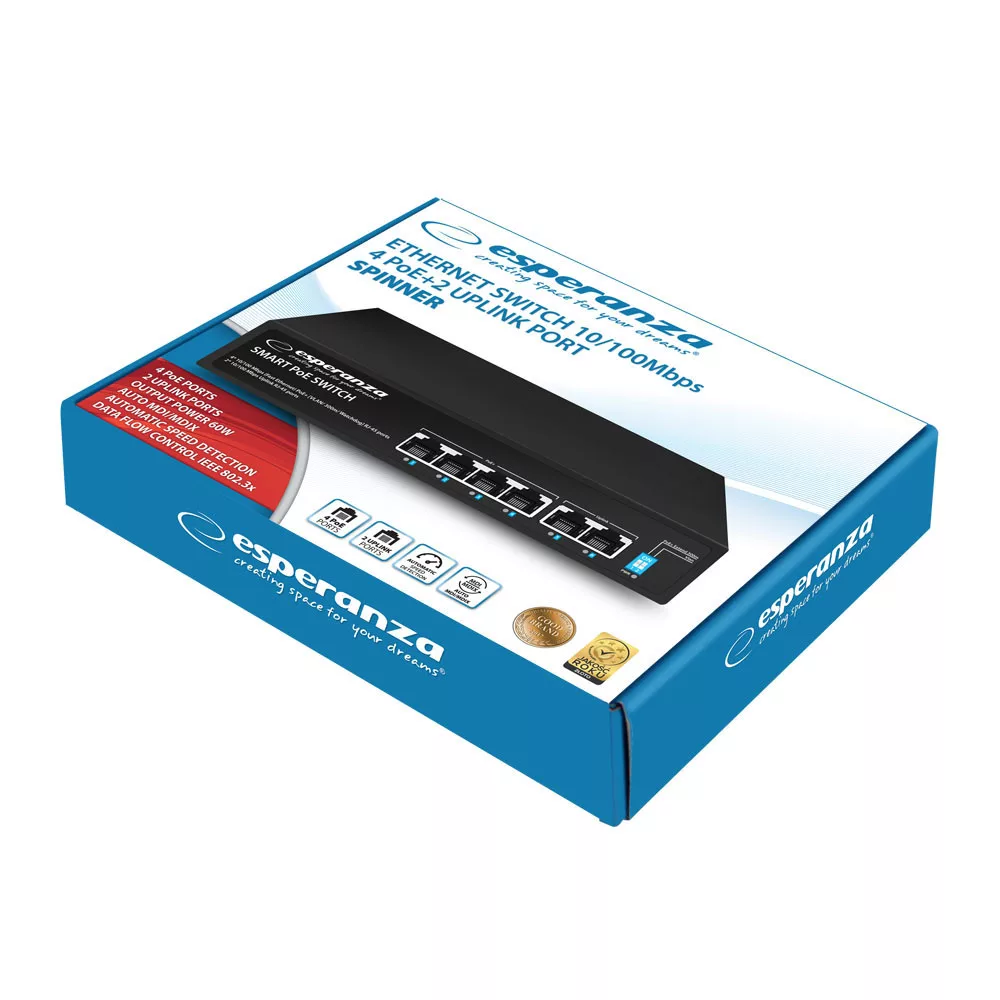

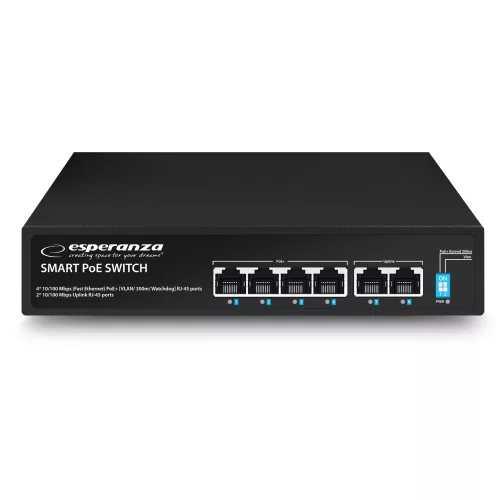

Esperanza 4 poe+2 uplink port ethernet kapcsoló 10/100 SPINNER

Esperanza SPINNER 6-Port PoE Switch – Compact Solution for IP Surveillance Systems

Build a stable and efficient surveillance system without complicated setup. The Esperanza SPINNER PoE Switch is a compact networking device designed for small and medium-sized CCTV installations, combining data transmission and power delivery in a single solution.

Designed for Surveillance Systems – Ready to Use

The switch has been specifically developed for IP surveillance applications, ensuring stable camera operation and easy installation without the need for configuration.

PoE Power Supply – Fewer Cables, Greater Convenience

The four PoE ports allow simultaneous data transmission and power delivery through a single Ethernet cable. This means:

• Easier installation
• Reduced cabling
• Cleaner and more professional-looking setups

Up to 300 m Transmission Range – Greater Installation Flexibility

The built-in Extend Mode (AI) increases both data and power transmission distance up to 300 meters, making the switch an excellent choice for larger buildings, warehouses, parking areas, and outdoor surveillance installations.

Intelligent Features for Network Stability

The switch is equipped with advanced technologies designed to improve reliability:

• AI-PoE Watchdog – automatically restores inactive PoE ports
• VLAN Port Isolation – enhances network security
• Auto MDI/MDIX – automatically detects and adjusts network connections

Performance Tailored to Your Needs

With a 1.2 Gbps switching capacity and Store and Forward technology, the switch ensures smooth and stable data transmission for connected surveillance devices.

Plug & Play – Quick Installation

No configuration is required. Simply connect your devices and the switch is ready to operate. It is an ideal solution for installers and users looking for simplicity, reliability, and fast deployment.

Compact Design – Versatile Applications

Its compact dimensions and wide operating temperature range (-20°C to 55°C) allow installation in various environments and operating conditions.

Choose simplicity and reliability. The Esperanza SPINNER is a compact PoE switch designed to power and connect your IP surveillance system efficiently and securely.

Technical Specifications

• Product Type: PoE Switch
• Product Name: Esperanza SPINNER
• Model / Index: ENS105
• EAN: 5901299960387

Product Functions

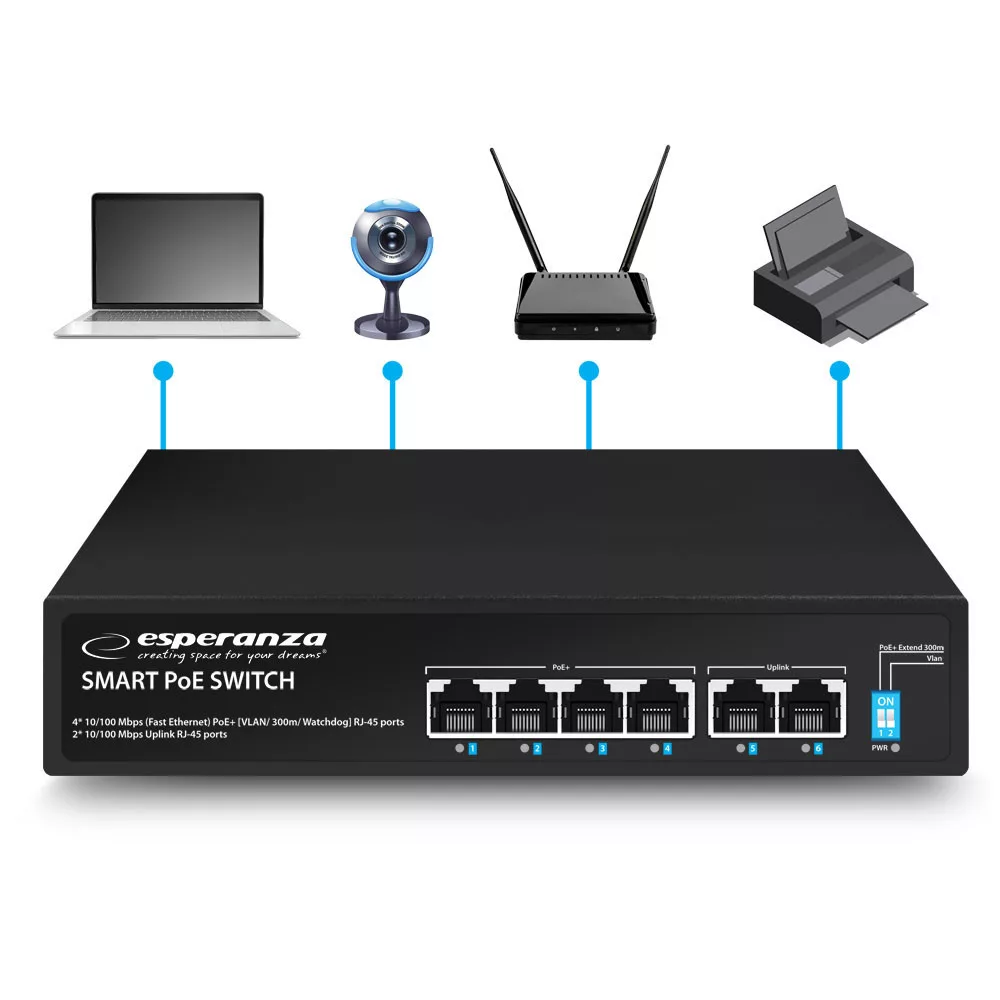

• PoE power supply for network devices
• Extend Mode (up to 300 m)
• VLAN (port isolation)
• AI-PoE Watchdog (automatic port recovery)
• Auto MDI/MDIX
• Plug & Play operation (no configuration required)

Product Construction

• 4 × RJ45 PoE 10/100 Mbps ports
• 2 × RJ45 uplink ports
• PoE and network LED indicators
• Built-in power supply

Key Parameters

• Switching Capacity: 1.2 Gbps
• Packet Forwarding Rate: 0.89 Mpps
• Buffer Memory: 768 K
• MAC Address Table: 2K
• Maximum Power per Port: 30 W
• Average Power per Port: 15.4 W
• Total PoE Power Budget: 60 W

Standards and Protocols

• IEEE 802.3 10BASE-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3x
• IEEE 802.3i
• IEEE 802.3af/at (Ports 1–4)

Connectivity / Power Supply

• Power Supply: 220–240 V / 50 Hz
• Standby Power Consumption: < 2 W
• Power Consumption at Full Load: 60 W
• Power Cable Length: 1 m

Transmission

• 10BASE-T: Cat5 UTP (up to 300 m)
• 100BASE-TX: Cat5 or higher (up to 100 m)

Operating Conditions

• Operating Temperature: -20°C to 55°C
• Storage Temperature: -40°C to 75°C
• Operating Humidity: 5%–90% (non-condensing)
• Storage Humidity: 5%–95% (non-condensing)

Overall Dimensions

• 195 × 135 × 40 [mm]

Other

• Certifications and Standards: CE
• Intended Use: IP surveillance systems, LAN networks
• Manufacturer Warranty: 24 months
