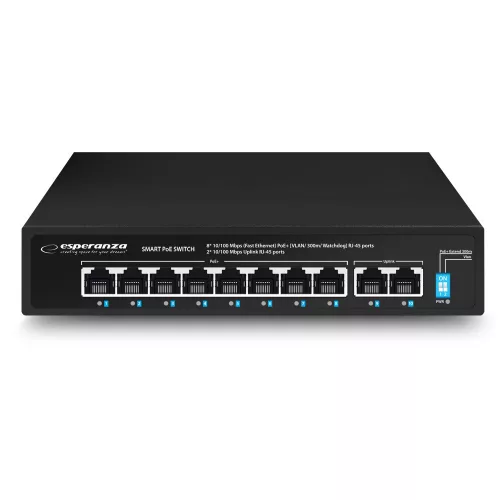

Esperanza 8 poe + 2 uplink port ethernet kapcsoló 10/100 SPOTTER

Esperanza SPOTTER 10-Port PoE Switch 96W – IP Surveillance Switch with Up to 300 m Transmission Range

Looking for a reliable solution for your IP surveillance system? The Esperanza SPOTTER 10-Port PoE Switch 96W enables simultaneous data transmission and power delivery to network cameras using a single Ethernet cable. With a transmission range of up to 300 meters and intelligent network management features, you gain stable surveillance performance without complicated configuration.

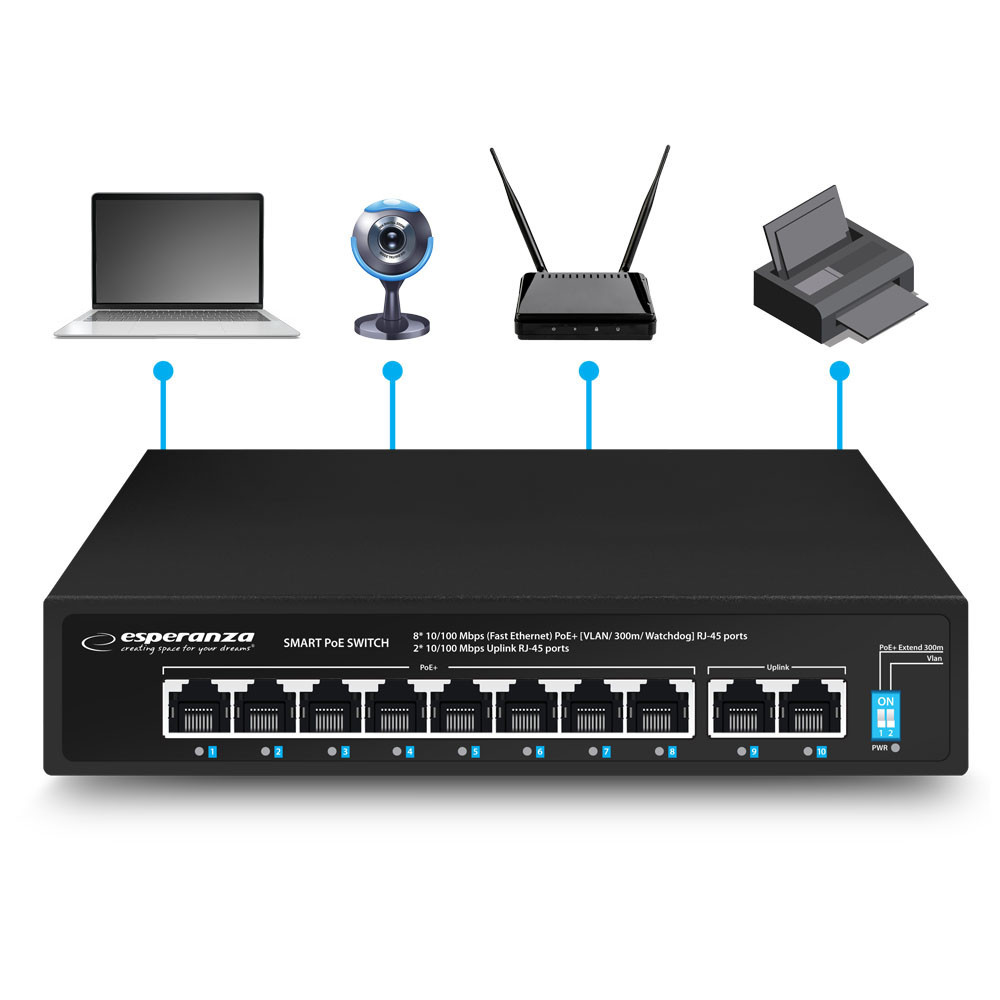

Designed for IP Surveillance Systems

The switch has been specifically developed for IP monitoring applications. Eight 10/100 Mbps PoE ports provide power to cameras compliant with the IEEE 802.3af/at standard, while two additional uplink ports allow convenient connection to an NVR recorder, router, or other network infrastructure devices. Thanks to PoE technology, you reduce cable clutter and simplify the installation of your entire surveillance system.

Data Transmission Up to 300 Meters

The built-in Extend Mode enables data and power transmission over distances of up to 300 meters, making it ideal for cameras installed on large properties, parking lots, warehouses, industrial facilities, and other expansive areas. This feature allows flexible system expansion without requiring additional networking equipment.

Intelligent Features for Increased Reliability

The Esperanza SPOTTER is equipped with an AI Watchdog function that automatically monitors connected PoE devices and restores communication if a connection issue is detected. This minimizes downtime and helps ensure uninterrupted camera operation. Additionally, the VLAN function isolates individual ports, improving network security and reducing unnecessary traffic between connected devices.

Stable and Efficient Performance

The switch uses Store and Forward technology and supports automatic MAC address learning and flow control. With a switching capacity of 2.0 Gbps and a packet forwarding rate of 1.488 Mpps, it delivers smooth communication and reliable performance even in surveillance systems with multiple connected cameras.

Easy Installation and Maintenance-Free Operation

Operating in Plug & Play mode, the switch requires no configuration. Simply connect your network devices and the switch automatically detects and adjusts network parameters. Its compact design allows convenient installation in offices, retail stores, warehouses, and other locations requiring dependable IP surveillance.

Choose the Esperanza SPOTTER and build a stable, efficient, and easy-to-manage IP surveillance system. It is a practical solution for small and medium-sized installations requiring reliable PoE power delivery and data transmission.

Technical Specifications

• Product Type: PoE Switch for IP Surveillance

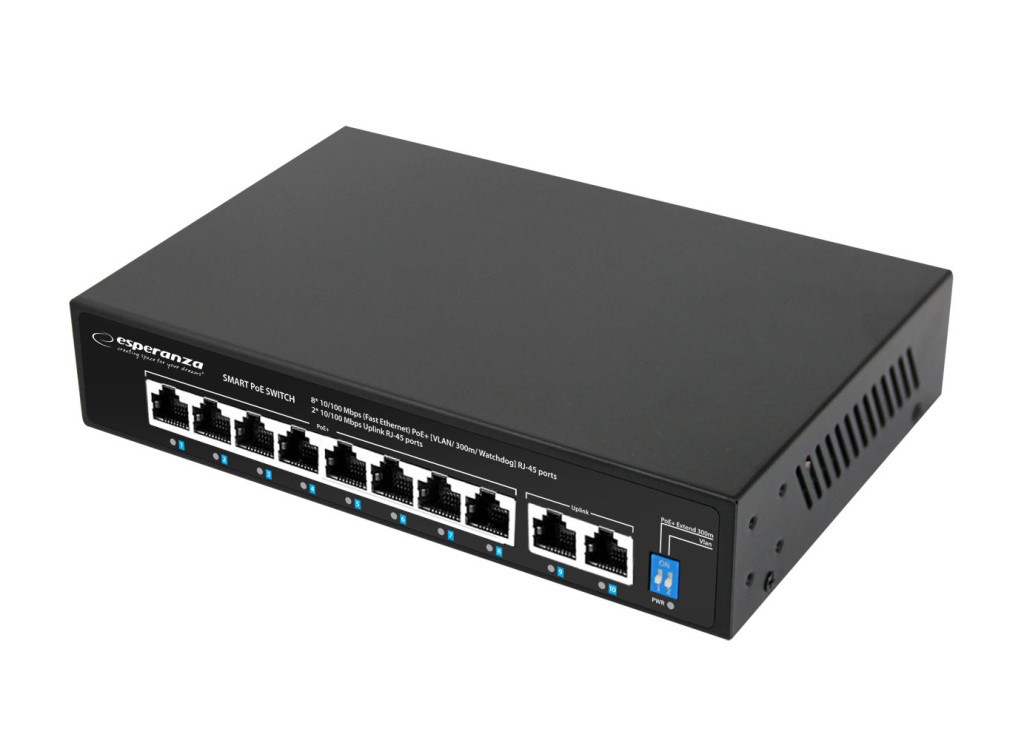

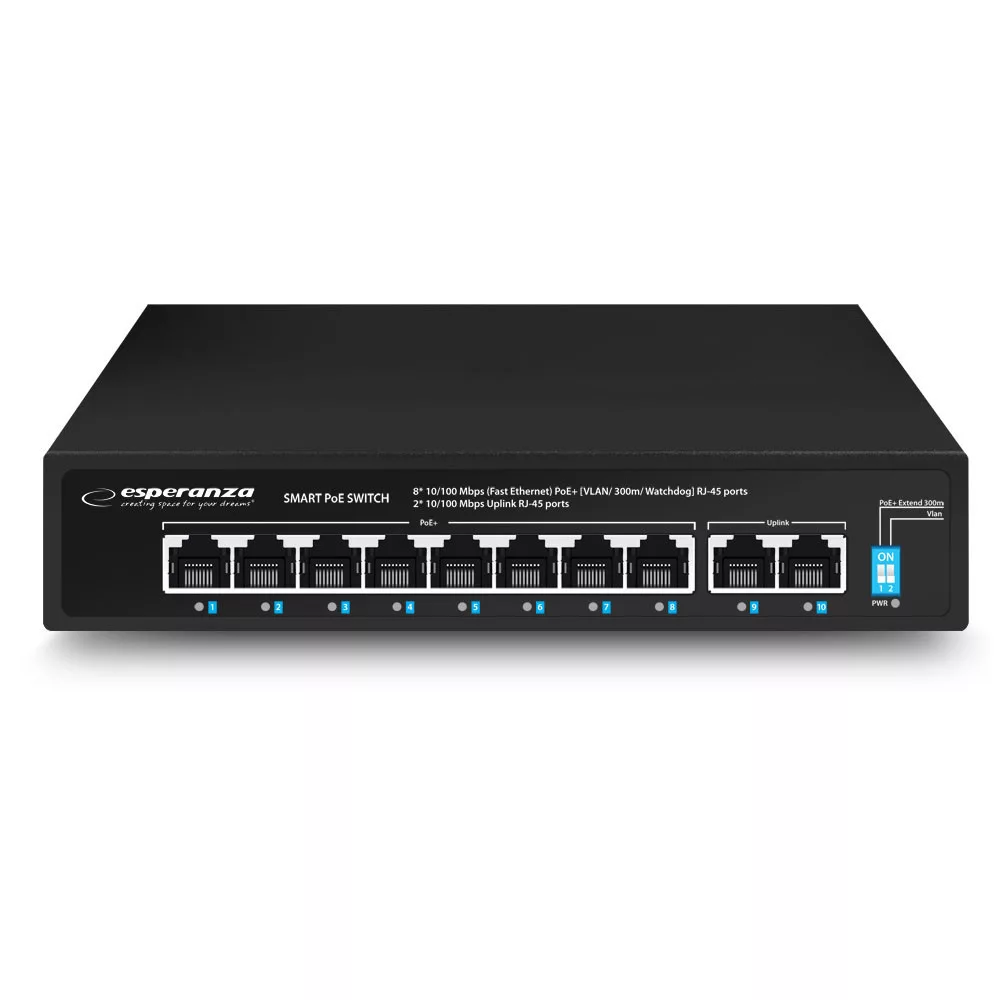

• Product Name: Esperanza SPOTTER 10-Port PoE Switch 96W
• Model / Index: ENS106
• EAN: 5901299960394

Product Functions

• IEEE 802.3af/at PoE support
• Extend Mode – data and power transmission up to 300 m
• VLAN function – port isolation for ports 1–4
• AI Watchdog – automatic network recovery
• Automatic link speed detection
• Auto MDI/MDIX crossover detection
• Flow control support
• Automatic MAC address learning and updating
• Plug & Play operation without configuration

Product Construction

• 8 × RJ45 PoE 10/100 Mbps ports
• 2 × RJ45 Uplink 10/100 Mbps ports
• PoE and network LED indicators
• Built-in power supply
• Extend / VLAN / Watchdog mode switch

Overall Dimensions

• 195 × 135 × 40 [mm]

Key Parameters

• Network Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3i
• PoE Standard: IEEE 802.3af/at
• Transmission Method: Store and Forward
• Packet Forwarding Rate: 1.488 Mpps
• Switching Capacity: 2.0 Gbps
• Buffer Memory: 1.25 M
• MAC Address Table: 4 K
• Maximum Power per Port: 30 W
• Average Power per Port: 15.4 W
• Total PoE Power Budget: 96 W
• PoE Power Pins: 1/2(+), 3/6(-)

Temperature Specifications

• Operating Temperature: -20°C to 55°C
• Storage Temperature: -40°C to 75°C

Connectivity / Power Supply

• Power Supply: 220–240 V / 50 Hz
• Power Cable Length: 1 m
• 10BASE-T Transmission: Cat5 UTP up to 300 m
• 100BASE-TX Transmission: Cat5 or higher UTP up to 100 m

Package Contents

• Esperanza SPOTTER ENS106 PoE Switch
• Power Cable
• User Manual

Other

• Standby Power Consumption: <4 W
• Full Load Power Consumption: 96 W
• Operating Humidity: 5–90% non-condensing
• Storage Humidity: 5–95% non-condensing
• Certifications and Standards: CE
• Manufacturer Warranty: 24 months
