ESPERANZA DVB-T2 H.265/HEVC DIGITÁLIS FÖLDFELSZÍNI TV-VEVŐ EV106P

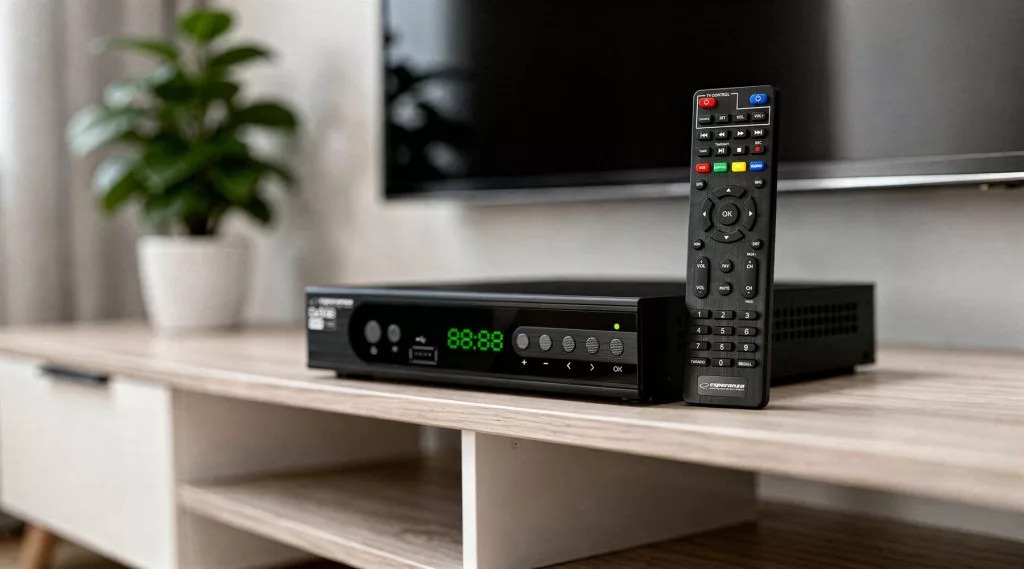

ESPERANZA EV106P – Digital DVB-T2 H.265/HEVC Tuner/Decoder with Display for More Viewing, Easy Recording and Versatile Use

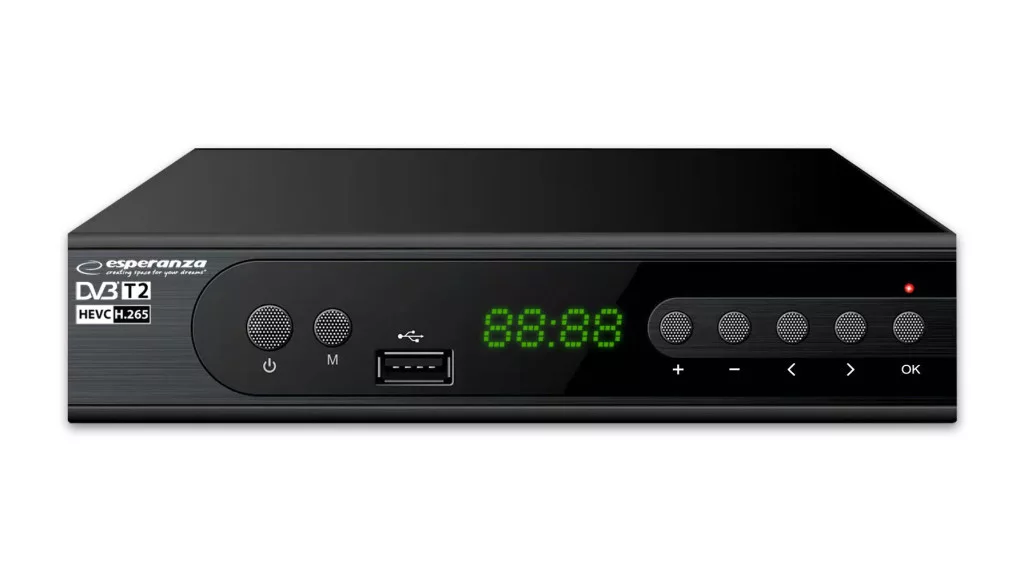

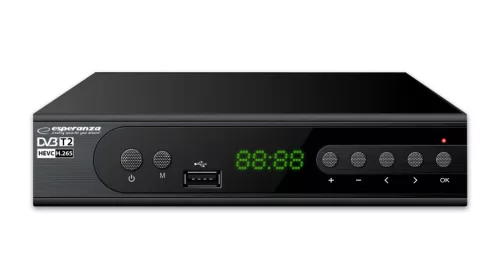

The modern Esperanza EV106P tuner/decoder with a clear front display is an advanced and reliable solution for receiving free-to-air terrestrial digital television in the DVB-T/T2 standard. Designed for user convenience, high image quality and full control over viewed content, it works perfectly with both modern and older TV systems.

High image resolution and full standards compatibility

The decoder supports modern video standards MPEG-2, MPEG-4 H.264/AVC, and H.265/HEVC, enabling reception of TV channels in quality up to Full HD 1080p. Support for 4:3 and 16:9 aspect ratios ensures perfect image adjustment to any television.

Recording and Timeshift – full control over TV viewing

The built-in PVR (Personal Video Recording) function allows you to record TV programmes in digital quality to external USB storage devices. The Timeshift function lets you pause live broadcasts and return to them at any time, so you watch exactly when it suits you.

Two USB ports and extended multimedia capabilities

The decoder is equipped with 2 USB ports, enabling simultaneous programme recording and playback of multimedia files and photos from external storage devices.

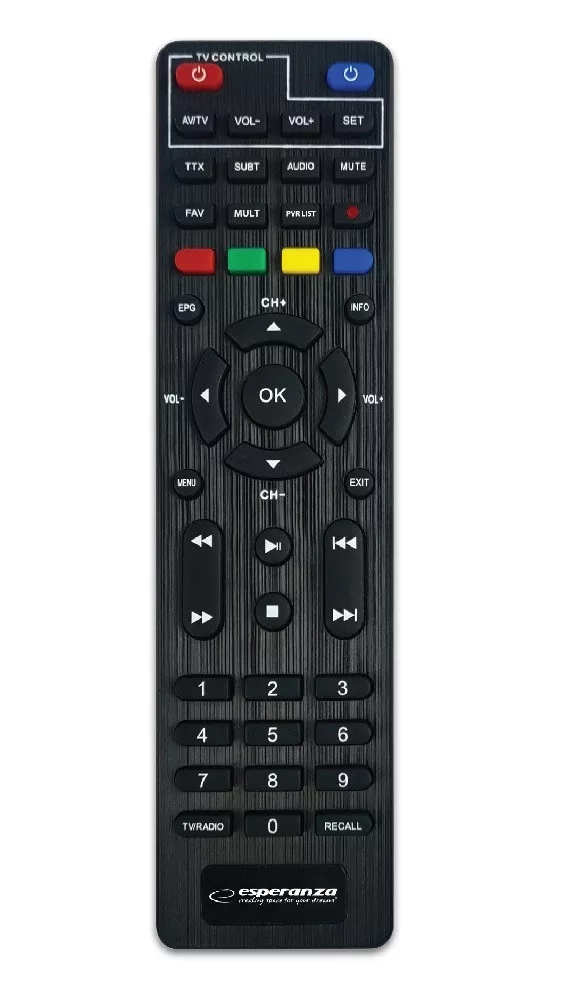

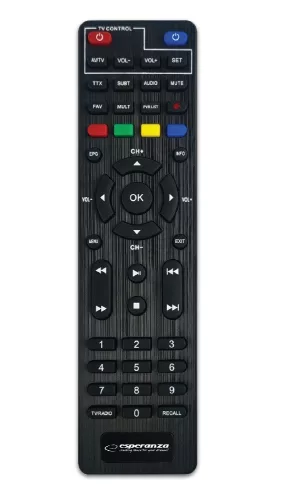

Programmable remote control – one device, full control

The set includes a programmable remote control that can be configured to operate TV functions as well. This allows you to control both the decoder and the television with a single remote – greater convenience and a tidier TV setup.

Wide compatibility with televisions

Thanks to built-in HD OUT (HDMI v.1.3) and SCART connectors, the Esperanza EV106P works seamlessly with most televisions on the market, including both modern and older models.

Choose comfort, quality and modern features with the Esperanza EV106P decoder.

Technical data

• Product type: Terrestrial digital TV tuner / decoder with display
• Name: Esperanza Digital DVB-T2 H.265/HEVC Tuner/Decoder EV106P
• Product code: EV106P
• EAN / Barcode: 5901299957790

Supported standards:

• E-AC3
• MPEG-2
• MPEG-4 H.264/AVC
• H.265/HEVC

Product functions:

• Built-in PVR recording function
• Timeshift – time-shifted playback
• Playback of multimedia files and photos
• Programmable remote control

Supported resolutions:

• 576i / 576p / 720p / 1080i / 1080p

Audio:

• DIGITAL SOUND AC3
• E-AC3

Aspect ratios:

• 4:3
• 16:9

Input frequencies:

• 174–230 [MHz]
• 470–790 [MHz]

Bandwidth:

• 7 and 8 [MHz]

Modulation:

• QPSK
• 16QAM
• 64QAM
• 256QAM

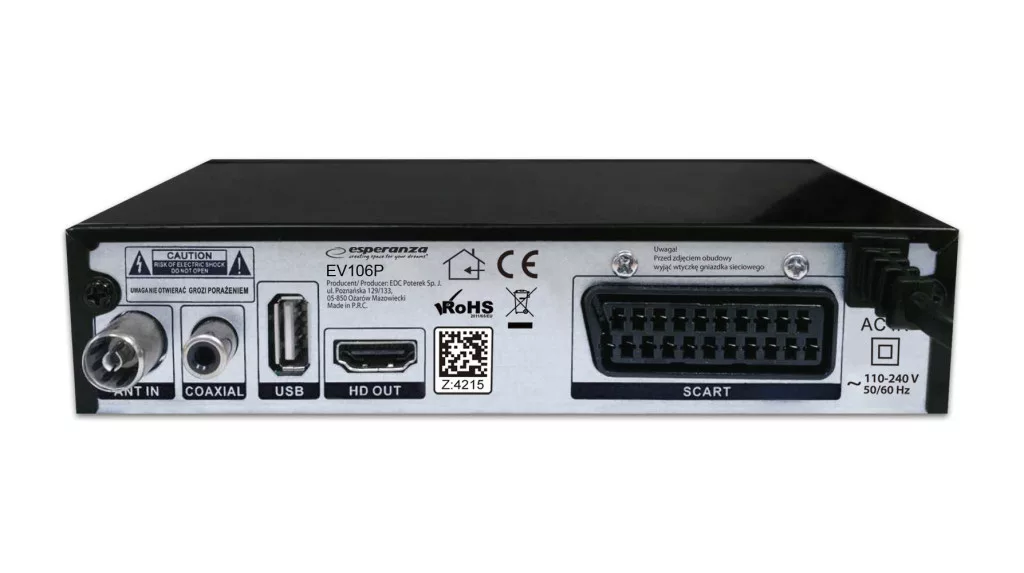

Built-in connectors:

• SCART
• HD OUT (HDMI v.1.3)
• Coaxial
• Antenna IN
• 2 × USB

Connectivity / power:

• Power supply: 220–240 [V] / 50 [Hz]
• Power consumption: < 6 [W]
• Standby power consumption: < 0.5 [W]
• Remote control power supply: 2 × AAA (not included)

Additional parameters:

• Input impedance: 75 [Ω]
• Power cable length: 90 [cm]

Dimensions:

• 165 × 90 × 35 [mm]

Other:

• Certificates and standards: CE
• Manufacturer warranty: 24 months
