ESPERANZA DVB-T2 H.265/HEVC DIGITÁLIS FÖLDFELSZÍNI TV-VEVŐ EV106R

ESPERANZA EV106R – Digital DVB-T2 H.265/HEVC Tuner/Decoder for More Channels and Convenient Recording

The Esperanza EV106R digital tuner/decoder is a modern and reliable solution for receiving free-to-air terrestrial digital television in the DVB-T/T2 standard. A clear front display and broad compatibility with video and audio formats ensure high picture and sound quality, making everyday use simple and comfortable.

High-definition picture and full standards support

The decoder supports modern codecs MPEG-2, MPEG-4 H.264/AVC, and H.265/HEVC, allowing you to enjoy smooth playback in resolutions up to Full HD 1080p. Support for multiple resolutions and aspect ratios 4:3 and 16:9 ensures perfect compatibility with your TV.

Recording and Timeshift – full control over your viewing

The built-in PVR (Personal Video Recording) function lets you record TV programmes in digital quality to external USB storage devices. With the Timeshift function, you can pause live TV and resume watching later—watch when it suits you.

Wide compatibility and rich connectivity

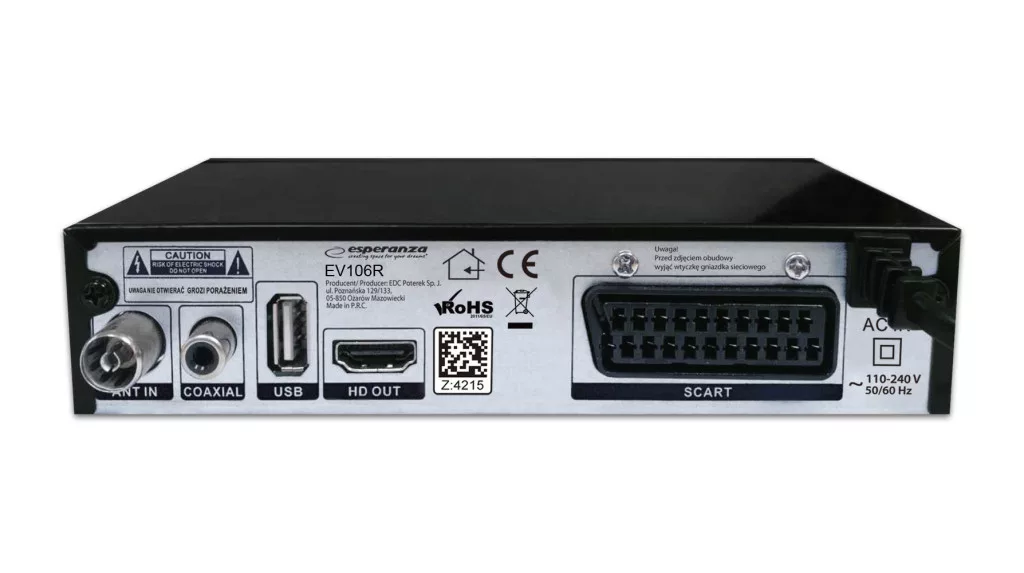

The Esperanza EV106R is equipped with SCART and HD OUT (HDMI v.1.3), making it suitable for both modern televisions and older TV sets. Two USB ports allow you to connect flash drives or external hard drives for recording and multimedia playback.

Intuitive operation and convenient remote control

A clear on-screen menu and a functional remote control make operation straightforward and user-friendly. All key features are easily accessible, without complicated setup or unnecessary steps.

Choose reliable reception of terrestrial digital TV with the Esperanza EV106R.

Technical data

• Product type: Terrestrial digital TV tuner / decoder
• Name: Esperanza Digital DVB-T2 H.265/HEVC Tuner/Decoder EV106R
• Product code: EV106R
• EAN / Barcode: 5901299957776

Supported standards:

• E-AC3
• MPEG-2
• MPEG-4 H.264/AVC
• H.265/HEVC

Product functions:

• Built-in PVR recording function
• Timeshift – time-shifted playback
• Playback of multimedia files from USB storage devices

Supported resolutions:

• 576i / 576p / 720p / 1080i / 1080p

Audio:

• DIGITAL SOUND AC3
• E-AC3

Aspect ratios:

• 4:3
• 16:9

Input frequencies:

• 174–230 [MHz]
• 470–790 [MHz]

Bandwidth:

• 7 and 8 [MHz]

Modulation:

• QPSK
• 16QAM
• 64QAM
• 256QAM

Built-in connectors:

• SCART
• HD OUT (HDMI v.1.3)
• Coaxial
• Antenna input IN
• 2 × USB

Connectivity / power:

• Power supply: 220–240 [V] / 50 [Hz]
• Power consumption: < 6 [W]
• Standby power consumption: < 0.5 [W]
• Remote control power supply: 2 × AAA (not included)

Additional parameters:

• Input impedance: 75 [Ω]
• Power cable length: 90 [cm]

Dimensions:

• 165 × 90 × 35 [mm]

Other:

• Certificates and standards: CE
• Manufacturer warranty: 24 months
