ESPERANZA DVB-T2 H.265/HEVC DIGITÁLIS FÖLDFELSZÍNI TV-VEVŐ EV108R

ESPERANZA EV108R – Digital DVB-T2 H.265/HEVC Tuner/Decoder for More Viewing, Easy Recording and Versatile Use

The Esperanza EV108R digital tuner/decoder is a modern and reliable solution for receiving free-to-air terrestrial digital television in the DVB-T/T2 standard. Its compact design, broad compatibility with video and audio standards, and intuitive operation make it an excellent choice for everyday use with both modern and older TVs.

High picture quality and modern standards

The decoder supports MPEG-2, MPEG-4 H.264/AVC, and H.265/HEVC, enabling reception of TV channels in resolutions up to Full HD 1080p. Support for 4:3 and 16:9 aspect ratios allows the image to be perfectly adjusted to your screen.

Recording and Timeshift – full control over your viewing

The built-in PVR (Personal Video Recording) function lets you record TV programmes in digital quality to external USB storage devices. With the Timeshift function, you can pause live TV and resume watching later – you decide when to watch.

Wide compatibility and practical connections

Equipped with HD OUT (HDMI v.1.3) and SCART, the Esperanza EV108R works with most televisions available on the market. The USB port allows you to connect a flash drive or external hard drive for recording and for playing multimedia files and photos.

Intuitive operation and convenient remote control

A clear on-screen menu and a functional remote control ensure that all options are easy to access and simple to use – without unnecessary complications.

Choose reliable terrestrial digital TV reception with the Esperanza EV108R.

Technical data

• Product type: Terrestrial digital TV tuner / decoder
• Name: Esperanza Digital DVB-T2 H.265/HEVC Tuner/Decoder EV108R
• Product code: EV108R
• EAN / Barcode: 5901299958117

Supported standards:

• E-AC3
• MPEG-2
• MPEG-4 H.264/AVC
• H.265/HEVC

Product functions:

• Built-in PVR recording function
• Timeshift – time-shifted playback
• Playback of multimedia files and photos from USB storage devices

Supported resolutions:

• 576i / 576p / 720p / 1080i / 1080p

Audio:

• DIGITAL SOUND AC3
• E-AC3

Aspect ratios:

• 4:3
• 16:9

Input frequencies:

• 174–230 [MHz]
• 470–790 [MHz]

Bandwidth:

• 7 and 8 [MHz]

Modulation:

• QPSK
• 16QAM
• 64QAM
• 256QAM

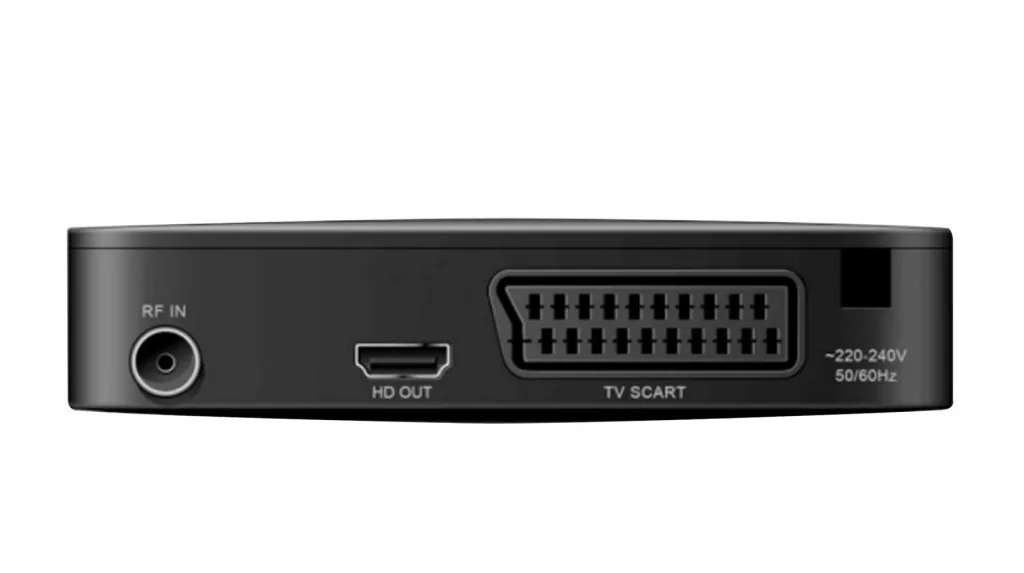

Built-in connectors:

• SCART
• HD OUT (HDMI v.1.3)
• Antenna RF IN
• USB

Connectivity / power:

• Power supply: 220–240 [V] / 50 [Hz]
• Power consumption: < 6 [W]
• Standby power consumption: < 0.5 [W]
• Remote control power supply: 2 × AAA (not included)

Additional parameters:

• Input impedance: 75 [Ω]
• Power cable length: 90 [cm]

Dimensions:

• 140 × 85 × 30 [mm]

Other:

• Certificates and standards: CE
• Manufacturer warranty: 24 months
