Extralink CAT5E FTP (F/UTP) Outdoor with gel | Twisted pair | 305M

• Details
• Data
• Reviews

Details

Extralink CAT5E FTP

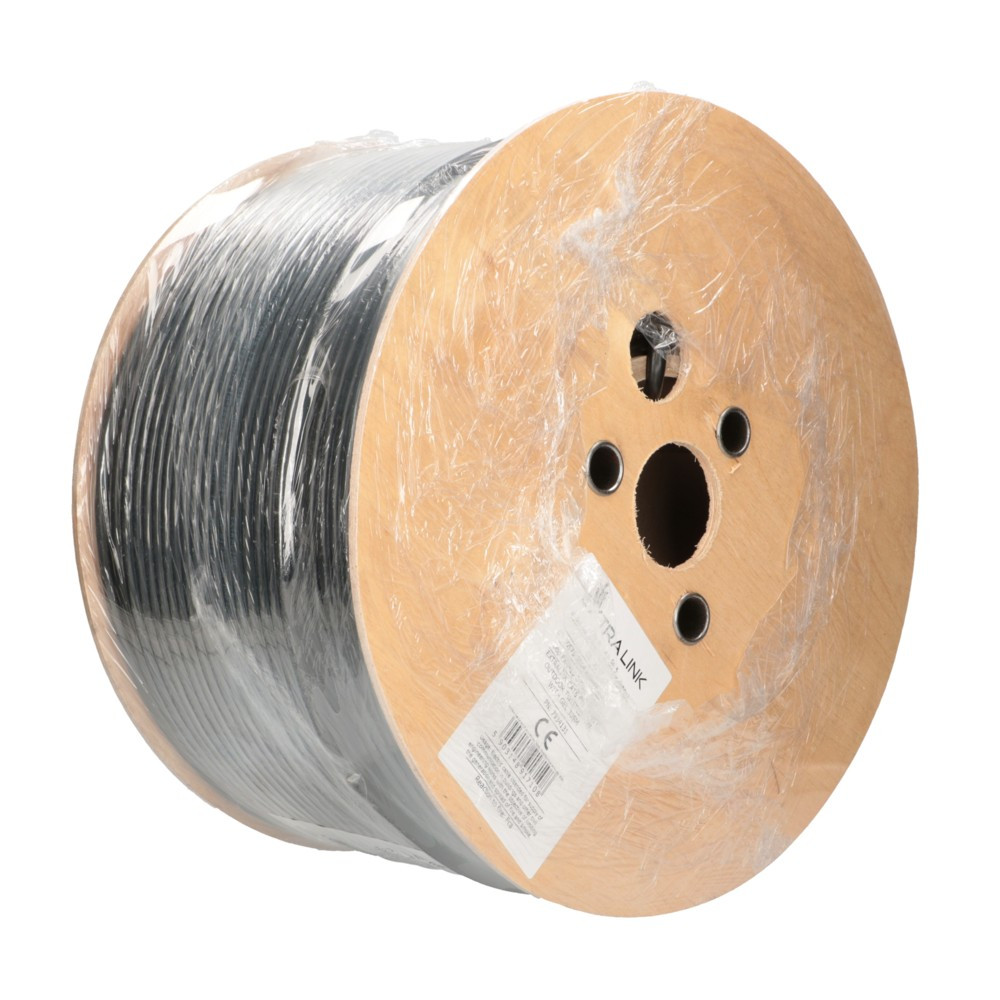

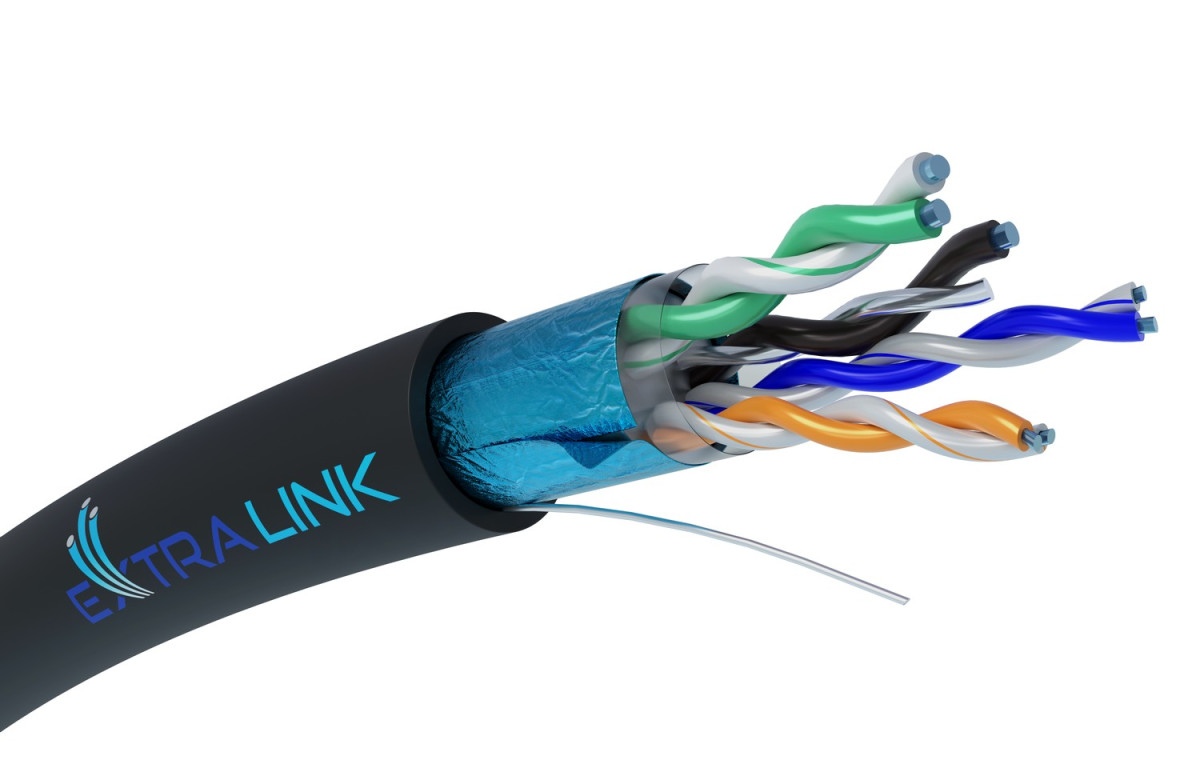

It is an ICT cable mounted on spools. The conductor is a soft copper wire. Twisted together the two wires form the core of the cable. It consists of four core pairs wrapped with water blocking tape. This tape provides effective protection against moisture. It is used for outdoor installation in telephone ducts, mines and collectors, on the walls of buildings with increased electromagnetic impact. It can be mounted in the temperatures from -15°C to +60°C. After mounting, however, the range increases and is from -50°C to +60°C. It works on frequencies up to 250 MHz.

Main Features:

• Core sheath: aluminium polymer film

• Sheath: PE, 0.6 mm thick, nominal cable Ř 7.8 mm

• Copper tinned contact wire

• Durable material

• Insulation: HDPE

• Crossbar: HDPE, 4x4 mm

• Tensile stress ≤ 85 N

• Insulation resistance GOhm / km ≥ 5

• Test voltage between conductors kV 2.5

Transmission characteristics at 20 °C

Data

EAN:

5903148917092

Gyártó:

EXTRALINK

Magasság (mm):

390.00

Hosszúság (mm):

390.00

Szélesség (mm):

235.00

Bruttó súly (kg):

11.40

Nettó súly (kg):

10.00

Kiszerelés:

35.7435

Magasság:

390

Hosszúság:

390

Szélesség:

235

Weight:

11,4 kg/db
